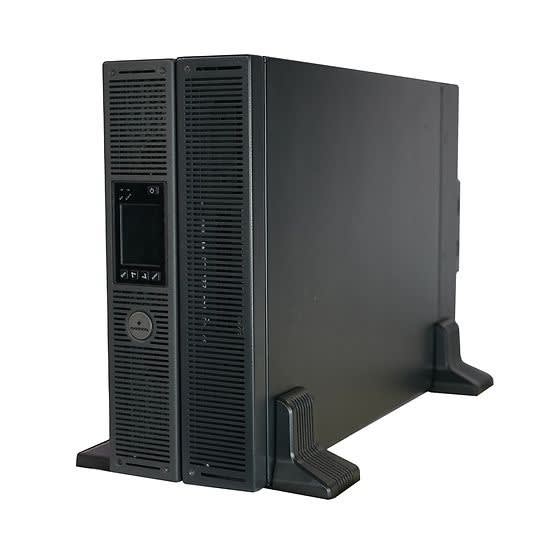

Uninterruptible Power Supplies S4K4U-D 6 kVA and S4K6U-D 10 kVA Industrial On-Line UPS
The SolaHD S4K4U6000D and S4K6U10KD Industrial UPS Series are the first true On-Line industrial UPS that provides higher output power factor, higher efficiency, flexible output voltage, an integrated maintenance bypass switch and internal batteries all in slim 4U (7.0”) and 6U (10.5") enclosures respectively.
The S4K4UD and S4K6UD features true On-Line (double conversion) topology providing the ultimate in protection against a wide range of potential power problems. The S4K4UD design of two 3 kVA, 120 V inverters allow flexible output voltage to meet mixed load voltage requirements.
The UPS automatically configures the output voltage to match the input configuration without requiring tap selections. Self-diagnostics simplify maintenance and troubleshooting. The standard maintenance bypass switch provides an additional level of protection.
The S4K4UD and S4K6UD also feature a wide input voltage window to support the critical load without having to transfer to the battery. This extends system availability when back-up is truly needed.
Applications
Industrial Computers
Robotics and Process Controls
Industrial Automation Systems
Network Servers
Enterprise Telecommunication Systems
Printing and Publishing Machinery
Pharmaceutical and Medical Diagnosis Equipment
Industrial and Commercial Machinery
Micro-processor Controlled Equipment
Mission Critical Devices
Features
True double conversion topology
Both models offer 208/120 V or 240/120 V
Configurable as a tower or rack mounting
User replaceable, hot-swappable internal battery module
Enhanced Load Capacity with an output power factor of 1
Input power factor greater than .99
Operation and Display panel with model specific color LCD offers simple configuration and control of UPS
ECO Mode and smart sleep mode help to save the maximum amount of energy
Integrated Maintenance Bypass
Automatic internal bypass
External Battery Cabinets with auto-detection
Battery Health Status and replacement date prediction
Optimized Thermal Management and variable speed fan
Energy Star 2.0 Certified
Integrated Dry Contacts with selectable definition
RDU101 Network communications card with advanced features
