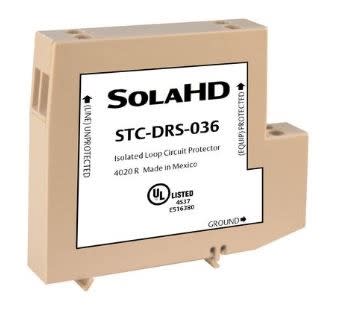

STC-DRS Series - DIN Rail Protection The STC-DRS Series uses three-stage hybrid technology, this DIN Rail mountable, single pair, surge suppressor attenuates over-voltage transients with gas tubes and silicon avalanche components while resettable fuses (PTCs) mitigate sneak currents.The PTC increases resistance by several orders of magnitude when over-currents exceed safe levels. A normal state resumes when over currents are removed. The ability to self-restore in this manner significantly increases suppressor performance and survivability.
The STC-DRS Series mounts onto a standard 35 mm industrial DIN rail. There are three Field Side and three Electronics Side screw terminals, one is reserved for a shield. Three electrically tied ground terminals are provided for grounding the unit to building-approved ground. The shield is isolated from ground.
Application
Intended for indoor use on communication loop circuits which have been isolated from the Public Switch Telephone Network
Features
Low-Voltage data surge protection
Three-Stage hybrid technology
Sneak/Fault current protection with resettable fuses (PTCs)
