Manufacturer: Sola Hevi Duty

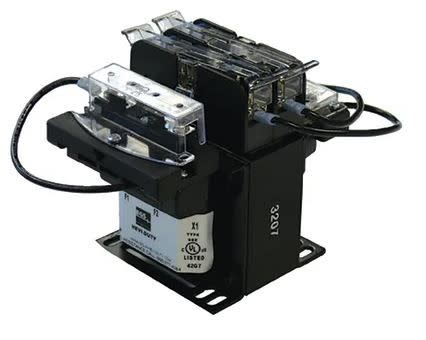

Product Code: E200EWA

Description Manufacturer's Data Sheet

Industrial Control Transformers

The SBE - Encapsulated, Copper Wound Series

The SBE Encapsulated industrial control transformers

are epoxy encapsulated to seal the transformer windings against moisture, dirt and industrial contaminants. Extra deep, molded terminal barriers reduce the chance of electrical failure as the result of arcing or frayed lead wires. The rugged construction and proven reliability of the SBE design is uniquely suited for all industrial environments.


50 - 1000 VA, 50/60 Hz suitable for worldwide


Interleaved copper windings reduce I2R losses

and maximize efficiency.

55°C Rise, 105°C insulation system to minimize heat

Epoxy encapsulated to protect cores and coils against

moisture, dirt, and other contaminants.

Meets or exceeds NEMA Standard ST-1 and ANSI C89.1

for load inrush capability.

Integrally molded, flame retardant (IEC 707/ISO Class

1210) Terminal Blocks provide greater terminal contact area and improved conductivity.

Heavy gauge steel mounting plate

Mounting dimensions are compatible with similar

control transformers.

Secondary fuse holders (FB2X) included for 13/32 x

cartridges (fuses not included).

Factory-installed fuse holders are available

(See W, WA & WB options).

Ten year limited warranty

Certifications and Compliances

Listed: E77014

- UL 506

- CSA C22.2 No. 66

RoHS Compliant

Related Products

Linear Power Supplies

DIN Rail DC Power Supplies

Constant Voltage Transformers

See SBE Accessories

VAPrimary Fuse Holder Class "CC"Dimensions
W Option - Midget Type Catalog NumberWA Option - Type 3AG w/ Covers
Catalog Number
WB Option - Midget Type w/ Covers
Catalog Number
Height in (mm)Width in (mm)Depth in (mm)Approx. Ship Weight lbs (kg)
50E050EWE050EWAE050EWB4.18 (106.2)3.01 (76.5)3.99 (101.3)3.0 (1.36)
75E075EWE075EWAE075EWB4.41 (112.0)3.39 (86.1)4.36 (110.7)4.0 (1.82)
100E100EWE100EWAE100EWB4.41 (112.0)3.39 (86.1)4.61 (117.1)5.0 (2.27)
150E150EWE150EWAE150EWB5.36 (136.1)4.50 (114.3)4.48 (113.8)8.0 (3.64)
200E200EWE200EWAE200EWB5.36 (136.1)4.50 (114.3)4.79 (121.7)10.0 (4.55)
250E250EWE250EWAE250EWB5.36 (136.1)4.50 (114.3)5.21 (132.3)11.0 (5.00)
300E300EWE300EWAE300EWB5.99 (152.1)5.25 (133.4)4.66 (118.4)12.0 (5.45)
350E350EWE350EWAE350EWB5.99 (152.1)5.25 (133.4)5.07 (128.8)15.0 (6.82)
500E500EWNAE500EWB5.99 (152.1)5.25 (133.4)5.75 (146.1)19.0 (8.64)
750E750EWNAE750EWB7.01 (178.1)6.38 (162.1)6.93 (176.0)31.0 (14.09)
