Home
>
Power Quality and Distribution Solutions
>

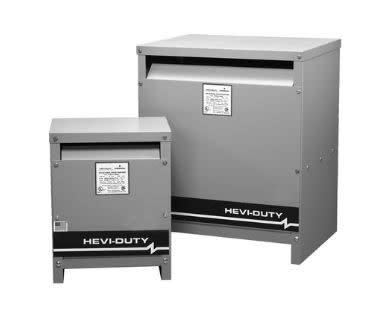

SolaHD E2HB75S 75KVA 480D-208Y 80C
SolaHD E2HB75S 75KVA 480D-208Y 80C
SolaHD E2HB75S
List Price: $8,469.12
Our Price:
$
5,320.64
Savings: $3,148.48
Manufacturer:
SolaHD
Product Code:
E2HB75S
Qty:
Description
Low Temperature Rise
SolaHD Low Temperature Rise transformers feature a 220°C
insulation system and temperature rise of only 80°C or 115°C
under full nameplate load. Reduction in temperature rise
increases reliability.
The 35°C thermal reserve on 115°C rise units and 70°C
reserve on 80°C rise units definitely mean higher reliability.
The extra benefit is being able to operate either of these
transformers as a 150°C rise unit and have a short term
overload capacity of 15-30% without compromising normal life
expectancy.
Low temperature rise transformers are designed for any critical
application requiring extra overload capability and cooler
operating temperatures. All are available with either a 115°C or
80°C thermal rise and a Class 220°C insulation system.
Features
Energy Efficient Compliant to DOE 2016 1
Extra thermal reserve
Meets transit test requirements for ISTA (International Safe Transit Association) – Test Procedure 1E for packaged-product
Quiet operation with sound levels 3-6 dB below the NEMA ST-20 requirements
Accessories and Optional Design Styles
Wall mounting brackets (500 lbs maximum) (Item WB1C)
Weather Shields (UL Listed/NEMA Type 3R)
Stainless Steel Enclosures
Totally enclosed non-ventilated designs (TENV) (Non UL) *
Open core and coil designs (UL Recognized)
Copper Wound designs
Certifications and Compliances
Listed: E25872
UL 1561
Accessories
SolaHD WS30 WEATHERSHIELD SET 75/112KVA 3P
Our Price:
$97.80
