SolaHD HTP81F45AS 45KVA 480D-480Y SS
SolaHD HTP81F45AS 45KVA 480D-480Y SS
SolaHD HTP81F45AS
List Price: $14,714.46
Our Price:
$
9,600.93
Savings: $5,113.53
Manufacturer:
SolaHD
Product Code:
HTP81F45AS
Qty:
Description

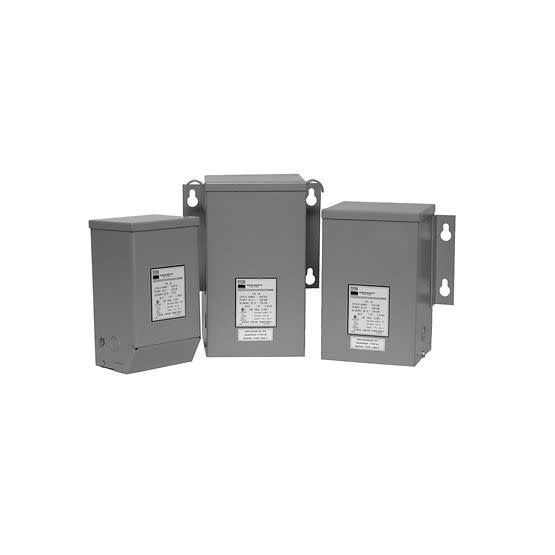

Automation Transformers - Non-Ventilated 50 VA to 45 kVA
SolaHD encapsulated transformers are rated for hazardous
locations as well as harsh industrial environments.
Encapsulation and rugged UL Listed/NEMA Type 3R
enclosures protect the transformer from dust, moisture,
and provides extra shock and vibration resistance. SolaHD
transformers fully comply with the latest edition of the
National Electrical Code for Class I, Division 2, Group A, B,
C and D locations when installed in compliance with NEC
501.100 (B).
Features
Single Phase: .05 - .250 kVA
UL Listed/NEMA Type 3R non encapsulated enclosure
for indoor and outdoor service
Low temperature rise, UL Class I30 ˚C insulation system, 80 ˚C temperature rise under full load
Conduit knockouts for side entry into wiring compartment
Copper lead wire terminations
Single Phase: 0.500 - 25 kVA
Three Phase: 3 - 45 kVA
Available as standard in Cold Rolled Steel or Painted Stainless Steel
UL Listed/NEMA Type 3R encapsulated enclosure for indoor and outdoor service
Electrostatically shielded for quality power on sizes 1 kVA and larger
UL Class 200˚C insulation system, 115˚C temperature rise under full load
Conduit knockouts for side entry into wiring compartment (Type 3R versions only)
Copper lead wire terminations
500 - 45 kVA units are encapsulated with electrical grade silica and epoxy for industrial applications
Related Products
Some SolaHD DC power supplies are available with
Class I, Division 2 ratings or encapsulation.
Surge Protective Devices
Certifications and Compliances
All Models
Listed: E25872, E77014
UL 1561 or UL 5085-1, UL 5085-2
CSA C22.2 No. 47 or No. 66
RoHS Compliant
Group 5, Export Models
Low Voltage Directive
IEC 61558-1, IEC 61558-2-4
Accessories and Optional Design Styles
Other enclosure styles available (contact Technical
Support for details):
316 Stainless Steel
Copper Wound designs
UL Listed/NEMA Type 4/12 or 4X Encapsulated Enclosures
Low temperature designs available
cULus Listed E361435 transformers for Class I, Division 2/Zone 2 hazardous locations are available as custom designs.
