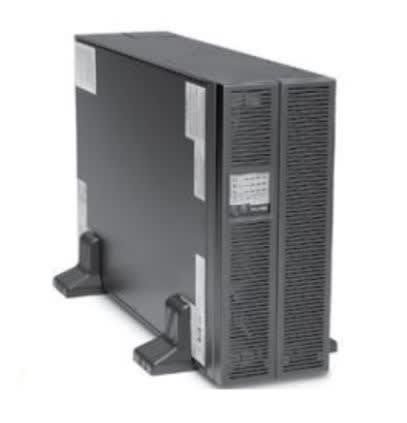

SolaHD S4K4U6000W0BATC UPS 6KVA 208/240 W/O BATT C
SolaHD S4K4U6000W0BATC UPS 6KVA 208/240 W/O BATT C
SolaHD S4K4U6000W0BATC
List Price: $14,432.76
Our Price:
$
9,518.38
Savings: $4,914.38
Manufacturer:
SolaHD
Product Code:
S4K4U6000W0BATC
Qty:
Description
S4K4U-C 6 kVA and S4K6U-C 10 kVA Industrial On-Line UPS
The SolaHD S4K4U6000C and S4K6U10KC Industrial
UPS Series are the first true On-Line industrial UPS that
provides higher output power factor, higher efficiency, flexible
output voltage, an integrated maintenance bypass switch
and internal batteries all in slim 4U (7.0”) and 6U (10.5")
enclosures respectively.
The S4K4UC and S4K6UC features true On-Line (double
conversion) topology providing the ultimate in protection
against a wide range of potential power problems. The
S4K4UC design of two 3 kVA, 120 V inverters allow flexible
output voltage to meet mixed load voltage requirements. The
UPS automatically configures the output voltage to match
the input configuration without requiring tap selections. Self
diagnostics simplify maintenance and troubleshooting. The
standard maintenance bypass switch provides an additional
level of protection.
The S4K4UC and S4K6UC also feature a wide input voltage
window to support the critical load without having to transfer
to the battery. This extends system availability when back-up
is truly needed.
Applications
Industrial Computers
Robotics and Process Controls
Industrial Automation Systems
Network Servers
Enterprise Telecommunication Systems
Printing and Publishing Machinery
Pharmaceutical and Medical Diagnosis Equipment
Industrial and Commercial Machinery
Micro-processor Controlled Equipment
Mission Critical Devices
Features
True double conversion topology
Higher power factor of 0.80 (6kVA) and 0.90 (10kVA)
Both models offer 208/120 V or 240/120 V
Configurable as a tower or rack mounting
Highest density, 6 kVA in only 4U and 10 kVA in only 6U of rack space
Easily installed in 18” to 32” deep rack using rack mount kit # SRS1832
User replaceable, hot-swappable internal battery module
Extended battery cabinets
Includes both automatic and manual maintenance bypass switch
Automatic frequency detection (60 or 50 Hz)
Power factor correction
Self-diagnostics simplify maintenance and troubleshooting
Remote emergency Power Off (REPO)
IntellislotTM USB and terminal block communication ports
Compatible with most standby generators
Uses an average of 35% less energy than their standard counterparts
Provides continuous uptime for the connected equipment, with capacity and battery back-up delivered in cabinets that use 4U to 6U of rack space
Two year limited warranty
Certifications and Compliances
Listed, UPS Equipment
UL 1778
CSA C22.2 No. 107.3
IEEE/ANSI C62.41 Category A & B
ISTA Procedure 1A
ABS Type Approved
RoHS Compliant
