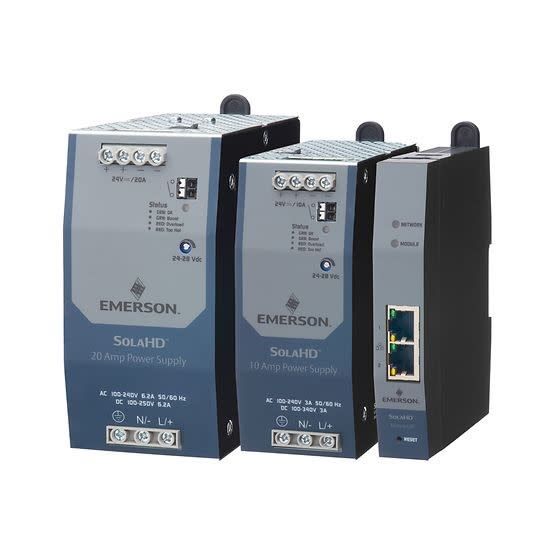

SolaHD SDN10-24-100D SDN-D High Performance DIN Rail Power Supply 240W
The SolaHD SDN1024100D is a high-performance DIN rail power supply providing 240 Watts of regulated 24 VDC output at 10 Amps. It is designed for industrial automation, process control, material handling and hazardous location applications requiring reliable control power.
| Part Number | SDN10-24-100D |
| Current SolaHD Ordering Number | SDN1024100D |
| Output Power | 240 Watts |
| Output Voltage | 24 VDC |
| Output Current | 10 Amps |
| Input Voltage Range | 90–264 VAC / 90–375 VDC |
| Phase / Frequency | Single Phase / 50/60 Hz |
| Mounting | DIN Rail |
| Efficiency | Up to 95% typical |
The SolaHD SDN-D Series is designed for demanding industrial automation, process control, material handling and hazardous location applications. Its compact, high-efficiency design helps reduce heat inside control enclosures while delivering reliable regulated 24 VDC power over a wide operating temperature range.
SDN-D power supplies support optional SCM communication modules for real-time monitoring and SDN redundancy modules for applications requiring increased system availability.
Applications- Industrial automation
- Process control systems
- Material handling and conveyors
- PLC and HMI control panels
- Machine control and OEM equipment
- Hazardous location installations
Features- High-performance, compact DIN rail design
- Regulated 24 VDC output with adjustable 24–29 VDC range
- Universal AC and DC input capability
- Continuous, inductive-load and circuit-interruption PowerBoost capability
- Active power factor correction
- Parallel operation capability and optional redundancy support
- DC OK relay and two-color LED diagnostics
- Optional SCM network communication modules
- Wide -40°C to +70°C operating temperature range
- Class I Division 2, ATEX and IECEx hazardous location approvals
- Five-year limited warranty
Related Products- SDN Redundancy Modules
- SCM Power Supply Communication Modules
- SDN-PMBRK3 Panel Mount Bracket Kit
- SDN-C High Performance DIN Rail Power Supplies
- SDU Industrial UPS Systems
SpecificationsSee the Manufacturer's Data Sheet tab below for complete specifications.
